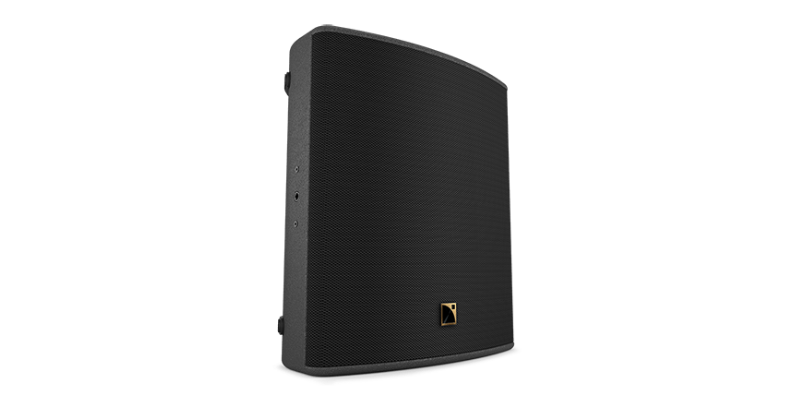

L-Acoustics X12

The L-Acoustics X12 is a versatile coaxial loudspeaker that delivers outstanding performance across a wide range of applications. With its 12″ driver and compact design, the X12 provides powerful, full-range sound with excellent clarity and coverage. Ideal as a stage monitor, front-of-house cabinet, or part of a distributed system, the X12 offers the premium audio quality expected from L-Acoustics in a flexible and rugged enclosure.

Categories: Audio, Speakers

SPECIFICATION

Key Features

Coaxial 2-way passive design
12" LF driver + 3" diaphragm compression driver
Exceptional clarity and consistent coverage
90° x 60° directivity (rotatable horn)
Compact and lightweight for its output class
Can be used as a monitor, FOH or fill speaker
Robust enclosure with multiple rigging options

Specification

Frequency Response: 59 Hz – 20 kHz (-10 dB)
SPL Output: 138 dB (peak)
Nominal Directivity: 90° × 60°
Power Handling: 300 W (RMS)
Drivers: 1 × 12" LF, 1 × 3" HF
Impedance: 8 Ω
Connectors: SpeakON NL4
Dimensions: 580 × 432 × 330 mm
Weight: 20 kg

Typical Applications

Stage monitoring for live performances
Corporate events and conferences
Touring and theatre productions
Houses of worship
Installed systems and venues

Hire Options

The L-Acoustics X12 is available for dry hire or as part of a complete L-Acoustics system with amplifiers and subwoofers. Supplied with protective touring cases, mounting accessories, and all necessary cabling.
