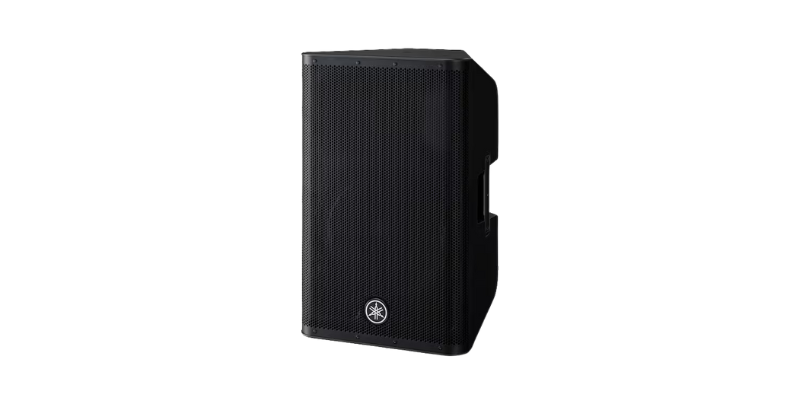

Yamaha DXR-12 Speaker

The Yamaha DXR12 is a high-power, full-range active loudspeaker that delivers outstanding clarity, punch, and versatility. With its 1100W Class-D amplifier, 12″ driver and precision DSP processing, the DXR12 is equally at home as a front-of-house speaker, stage monitor, or part of a larger PA system. Compact, rugged and reliable, it’s a go-to choice for live music, corporate events and touring productions.

Categories: Audio, Speakers

SPECIFICATION

Key Features

1100W Class-D bi-amped power module
12" LF driver + 1.4" HF compression driver
D-Contour intelligent DSP for consistent sound at any level
Wide 90° × 60° coverage for even audience coverage
Onboard 2-channel mixer with EQ controls
Lightweight, durable ABS enclosure
Floor wedge design for use as a monitor
Rigging points and pole-mount socket for flexible setups

Specification

Frequency Response: 52 Hz – 20 kHz
Maximum SPL: 132 dB
Amplifier Power: 1100 W (LF 950 W + HF 150 W)
Coverage: 90° × 60° constant directivity horn
Inputs: 2 × combo XLR/TRS, 1 × RCA stereo
Outputs: XLR thru/parallel out
Dimensions: 362 × 601 × 350 mm
Weight: 19.3 kg

Typical Applications

Live bands and DJs
Corporate presentations and awards nights
Theatre and touring productions
Houses of worship
Small to mid-sized venues and clubs

Hire Options

The Yamaha DXR12 is available for dry hire or as part of a complete audio system with subs, monitors and mixing desks. Supplied with protective covers, stands, and all required cabling.
